60m High Accuracy Laser Rangefinder Module - LRF60M3PS

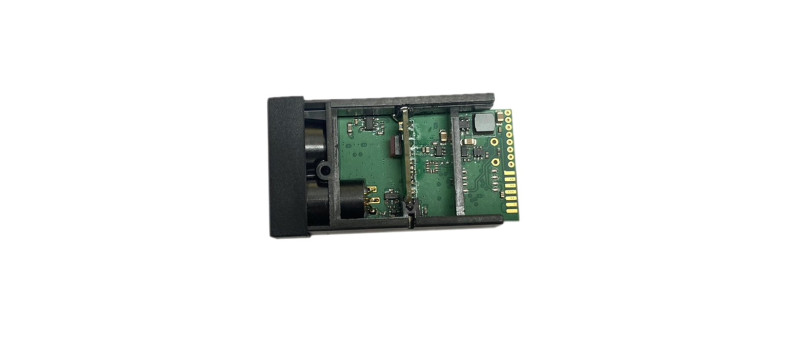

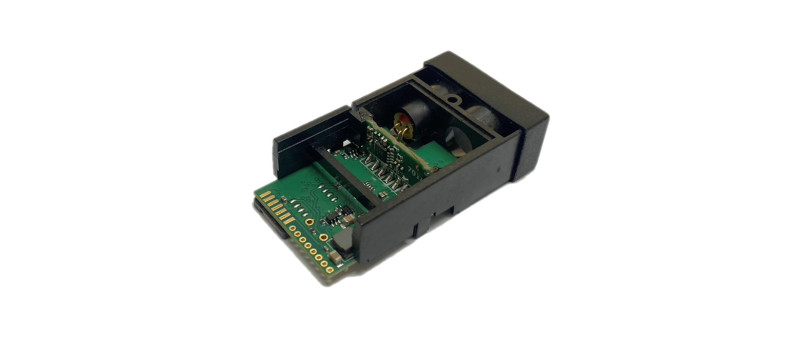

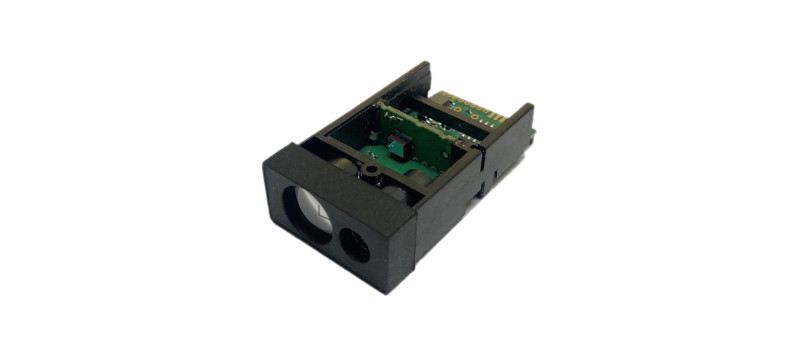

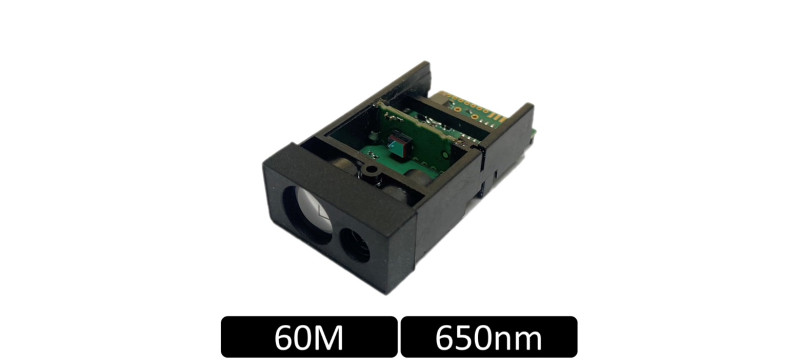

LRF60M3PS is a precision laser rangefinder module utilizing phase-shift technology, offering an accuracy of ±3mm. It is designed for measuring distances of approximately 60m indoors and 40m outdoors. The compact and lightweight features make it convenient for OEM users to integrate into systems and equipment.
Please note that the LRF60M3PS is designed for indoor measurements. Sunlight impacts its performance outdoors and reducing its measurement capability. Without direct sunlight on the module or target, and with target reflectivity above 80%, it can measure distances up to 30 meters.
Functions
- Single Measurement
- Continuous Measurement
- Fast/Slow/Auto Mode
- Address Setting
- Offset Setting
- Laser ON/OFF
Technical Information
| Model Name | LRF60M3PS |
| Measurement Range | 0.03 ~ 60m (Indoor) |
| Measurement Frequency | 3 Hz |
| Measurement Accuracy | ±3.0mm @ 25°C |
| Wavelength | 650 nm |
| Laser Safety | Class 2 |
| Communication Interface | TTL (UART) |
| Input Voltage | 3.3V DC |
| Operating Current | 80mA |
| Dimensions | 50 x 26 x 14mm |
| Weight | 10g |
| Operating Temperature | 0 ~ 40 °C |

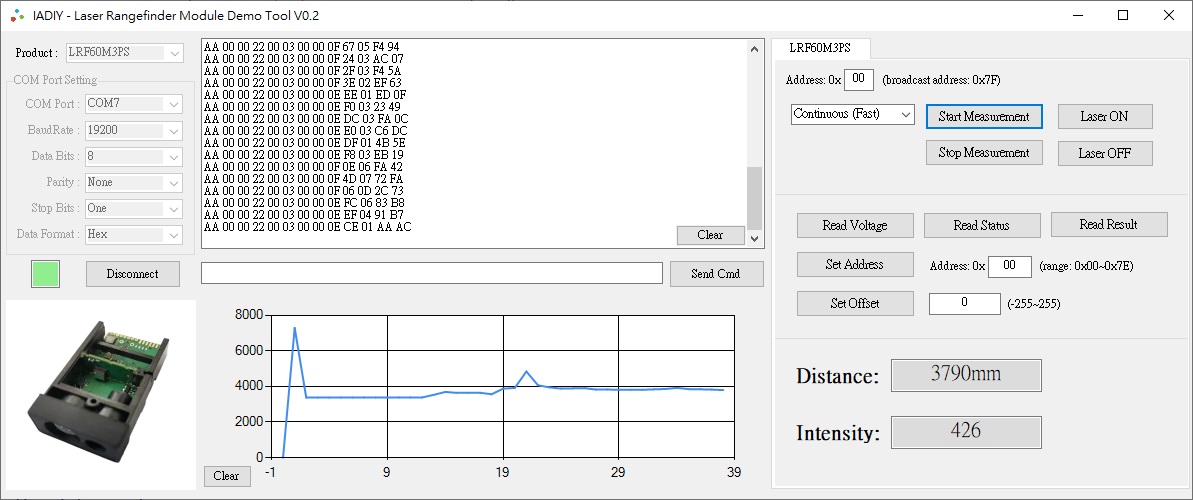

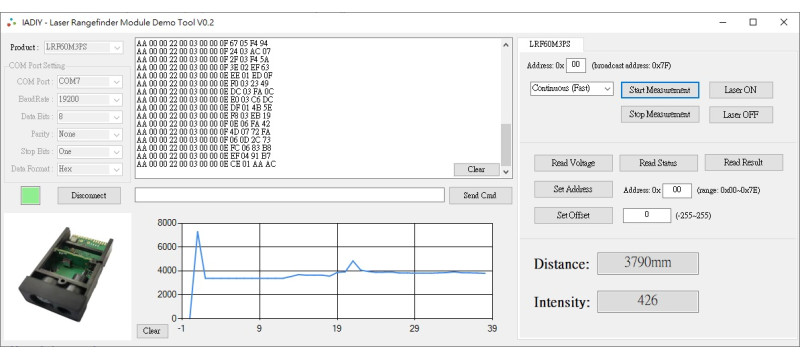

Demo Tool Download
Sample Code
LRF60M3PS Sample Code for Python
LRF60M3PS Sample Code for Arduino
Note:
For customization or mass production purchases, please contact us.
- Deliver Time: Available, 7~21 Days
- Product ID: LRF60M3PS
