Endoscope Camera Module 1M - SCM1M30D5.5U

Endoscope Camera Module 1M - SCM1M30D5.5U
Endoscope Camera Module 1M - SCM1M30D5.5U
Endoscope Camera Module 1M - SCM1M30D5.5U
Endoscope Camera Module 1M - SCM1M30D5.5U
Endoscope Camera Module 1M - SCM1M30D5.5U
Endoscope Camera Module 1M - SCM1M30D5.5U
Endoscope Camera Module 1M - SCM1M30D5.5U
Endoscope Camera Module 1M - SCM1M30D5.5U

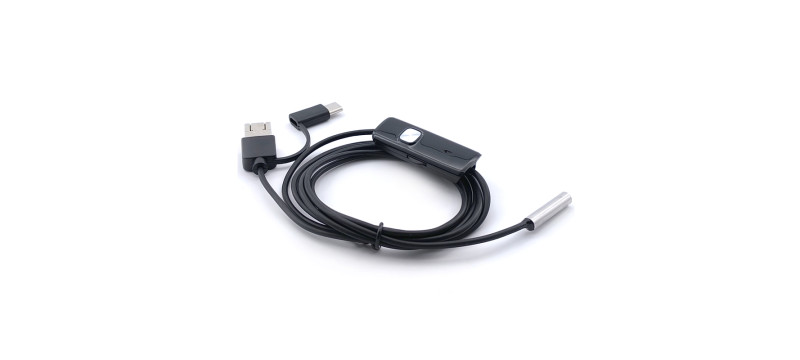

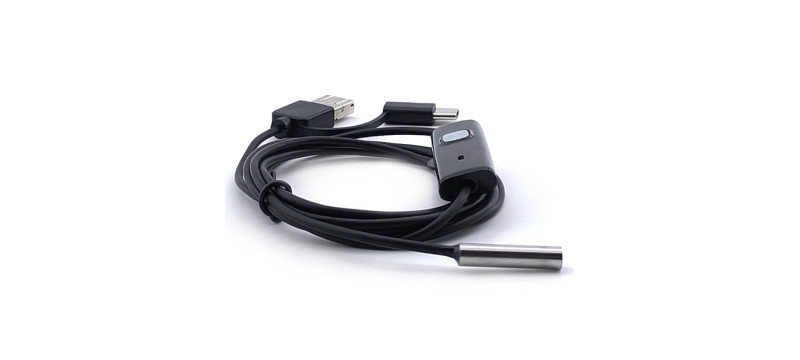

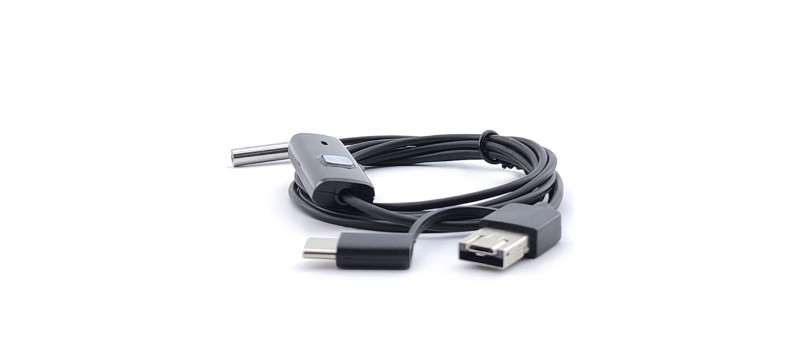

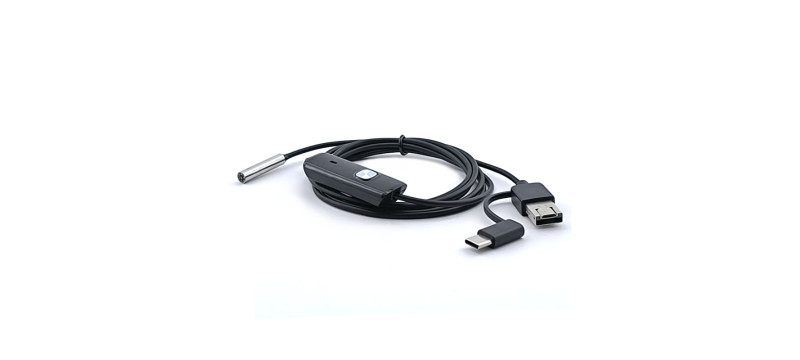

The SCM1M30D5.5U is a 1mega pixel, 1280x720 high resolution endoscope. USB cable length and LED light intensity adjuster can be options. IP67 waterproofing, selectable FOV angle, compact size make it an excellent inspection solution.


Technical Information:
Model SCM1M30D5.5U
Sensor GC1009
Image Size 1/9 inch
Image Pixels & Resolution 1M / 1280(H) x 720(V)
Image Formats YUV2 (YUYV) / MJPEG
Frame Rate

1280(H) x 720(V) @ 30fps

640(H) x 480(V) @ 30fps
Max S/N Ratio 36 dB
Dynamic Range 68 dB @ 8x gain
Sensitivity 600 mV/Lux-sec
Min Illumination 0.1 Lux
Shutter Type Electronic rolling shutter / Frame exposure
Connecting Port USB 2.0 High Speed
OTG Support USB OTG protocal support
3A Support Auto white balance, Auto exposure, Auto Gain control support
Operating Temperature -20 ~ 70°C
Operating Voltage DC 5V
Operating Current ~100mA
PCBA Dimension 5.5mmx25mm

Note:
The estimated lead time is 5 ~ 10 days. For detailed lead time, please contact us.
Endoscope Camera Module 1M - SCM1M30D5.5U

FEATURES

- GC1009 Image Sensor
- 1MP 1280(H)x720(V) @30fps
- Dimensions: D5.5x25mm
- USB 2.0 interface, UVC compliance
- Lens Type: Standard FOV(D) 88°

Datasheet

Download
Based on 0 reviews. - Write a review
$40.0
10 or more $34.0
50 or more $30.0
200 or more $24.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: SCM1M30D5.5U
Add to Cart
Buy Now Contact us
Add to Wish List Compare this Product
Note:

We also support custom made service as your requirements.

For more details, please contact us.

Tags: endoscope camera module
