DVP Camera Module 5M – DCM5M120M7F2

DVP Camera Module 5M – DCM5M120M7F2
DVP Camera Module 5M – DCM5M120M7F2
DVP Camera Module 5M – DCM5M120M7F2
DVP Camera Module 5M – DCM5M120M7F2

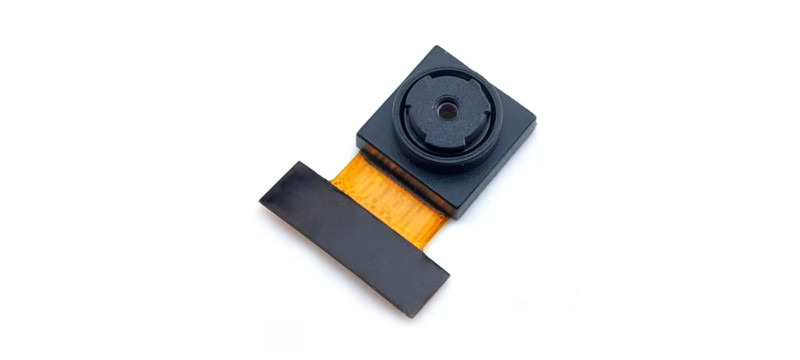

DCM5M120M7F2 is a 5 Mega Pixel DVP sensor module with an M7 lens slot. The lens can be selected for different FOV applications, and an Auto Focus lens is also an option. With a suitable FOV angle, small compact size, and cost-effectiveness, it is a great solution for embedded applications.

Evaluation Kit in available options is an additional USB adapter board that can be used to connect the camera module to a PC. Allows you to easily check the output of the camera module, including image quality and field of view. One thing to note, however, is that the adapter board is for demonstration or evaluation purposes only and it may not have the full functionality of the camera module.

Technical Information:

ModelDCM5M120M7F2
SensorOV5640
Image Size1/4 inch
Image Pixels & Resolution5M / 2592(H) x 1944(V)
Image FormatsRGB565/555/444, YUV422 and compression
Frame Rate2592(H) x 1944(V) @ 15fps
1920(H) x 1080(V) @ 30fps
1280(H) x 960(V) @ 45fps
1280(H) x 720(V) @ 60fps
640(H) x 480(V) @ 90fps
320(H) x 240(V) @ 120fps
Max S/N Ratio36 dB
Dynamic Range68 dB @ 8x gain
Sensitivity600 mV/Lux-sec
Shutter Typerolling shutter
Connecting Port0.5mm / 24pins FPC connector
Operating Temperature-30 ~ 70°C
Core VoltageDC 1.5V
Analog VoltageDC 2.8V
IO VoltageDC 1.8 / 2.8V
Operating Current140 mA
Camera Dimension8.5x8.5mm

Note:
The estimated lead time is 14 ~ 21 days. For detailed lead time, please contact us.

DVP Camera Module 5M – DCM5M120M7F2
FEATURES
- Omnivision OV5640 Image Sensor
- 5MP (2592x1944) DVP interface
- Pin Out: 24pin, pitch 0.5mm

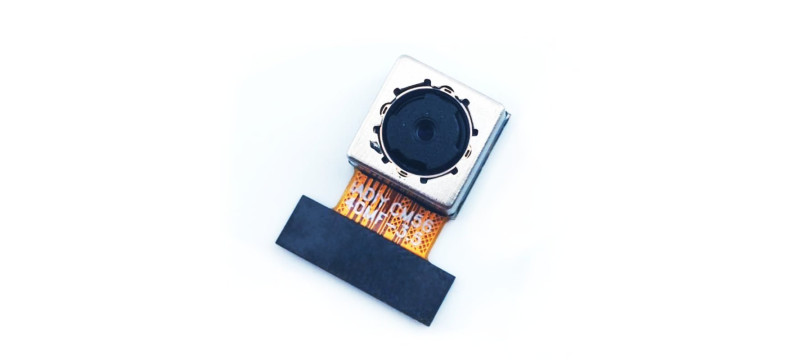

- Hardware Auto Focus Support
- Lens Type: M7 Mounts
- If you need custom FPC length or
   different FOV angle, please contact us
- Customized pin arrangement is also welcome

Datasheet

Download
Based on 0 reviews. - Write a review
$20.0
10 or more $16.0
50 or more $14.0
200 or more $12.0
1000 or more $10.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: DCM5M120M7F2

Available Options

Add to Cart
Buy Now Contact us
Add to Wish List Compare this Product
Note:

We also support custom made service as your requirements.

For more details, please contact us.
