AI Face Tracking Module

No complex coding, no extra camera, and no bulky computer!

Experience plug-and-play, all-in-one AI vision for face tracking with the compact-sized AI Face Tacking Sensor from IADIY, making AI easier and simpler than ever!

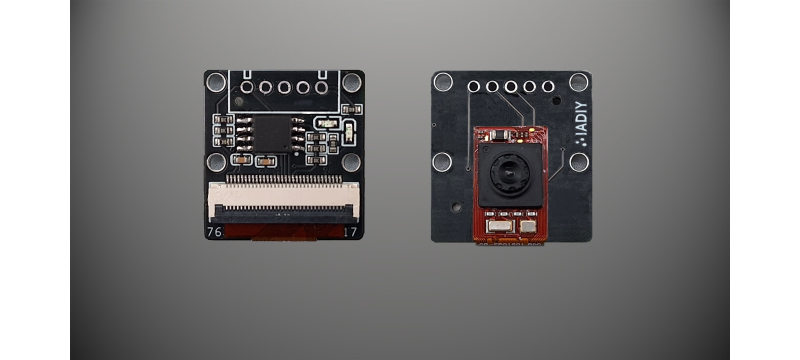

The IADIY AIS01 AI Face Detection and Face Tracking Sensor is a compact, all-in-one AI SoC that integrates both the CPU and camera into a single, efficient module. Pre-programmed with an advanced AI model, the AI Face Detection and Face Tracking sensor can detect human face and returning position and size data. This powerful AI sensor module offers plug-and-play functionality, eliminating the need for extra hardware or complex programming, such as using some camera module + giant CPU + complex programming. Its small form factor and edge AI capabilities make it perfect for quick and easy integration into various projects. Ideal for a wide range of applications, including smart fans, selfie sticks, robots, AIoT projects, and embedded systems, the AI Face Tracking Sensor AIS01 provides an all-in-one solution for AI face detection and tracking in one easy-to-use module.

AI Face Tracking Sensor Technical Specifications:

• UART Protocol
• 8N1

• Baud Rate: 115200bps
• Camera
• Resolution: 320x320
• Frame Rate: 50fps
• M5 Optical Lens with FOV:55°(Default)

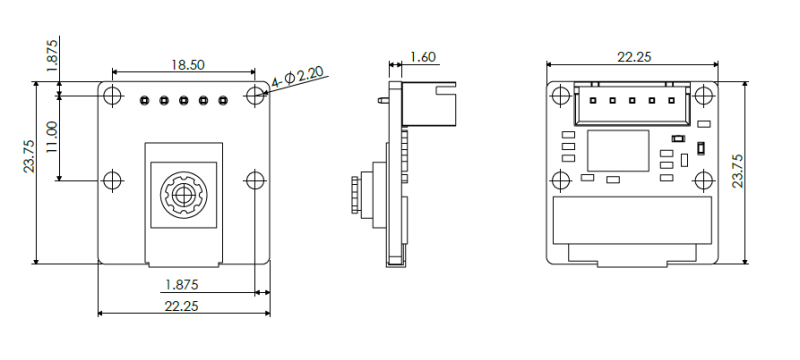

• Dimensions
• Length:23.75mm
• Width:22.25mm
• Power Consumption
• 3.3V@120mA
