AiyeCam-Talpa-DB is a monochrome AI camera module development board in AiyeCam-Talpa Series, which is mainly designed for testing purposes. AiyeCam-Talpa Series provides a small-sized and cost-effective smart camera module powered by an AI SoC that combines 1MP(320pixel x 320pixel) monochrome camera and a microcontroller with the ability to do edge computing with pre-trained AI model so that you can easily fit the AI camera module into various machine vision camera applications that prioritize compact dimensions and high volume, such as AI toys, IoT smart home devices, embedded systems, robotics, or consumer products. The main benefits of this development board(AiyeCam-Talpa-DB) for AiyeCam-Talp smart camera modules are that you can flash your program into memory via a micro-USB-b connector or visualize the results processed by AI camera module on the image display module via FPC connector.

AI Camera Module Development Board(AiyeCam-Talpe-DB) key benefits:

  • Extensive peripherals for edge computing or operating as an independent controller.
  • Pre-trained AI models to reduce training and development time.
  • I/O Pins are accessible via 2.54mm headers for development purposes.
  • Includes a CH341A programmer with a micro USB connector for development.

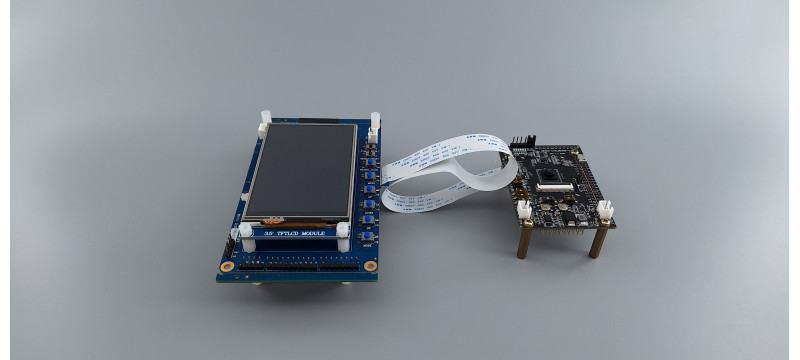

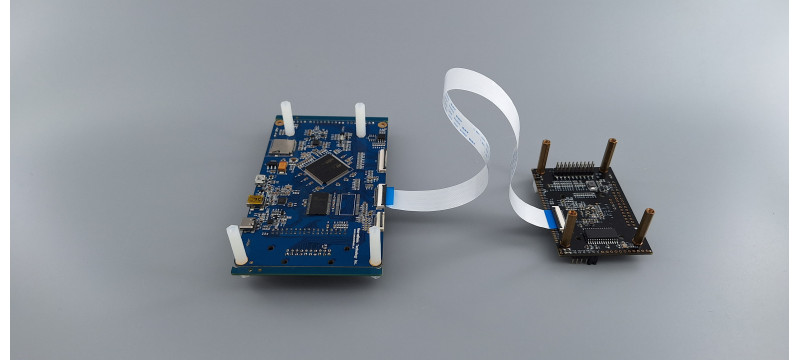

  • Image output port via an FPC connector to an image display module.

For AI models customizations, please feel free to contact us.

Available AI Applications for AI Camera Module:

  • Face Detection
  • Gesture Detection
  • Human Tracking
  • Posture Detection
  • ...

For other AI models or customizations, please feel free to contact us.

Technical Specifications:

  • Core
    • CPU: NB1001@up to 96Mhz
    • 288kB on-chip SRAM
  • Camera
    • Resolution: 320x320
    • Sensitivity: 1.2v/lux-sec
    • Pixel Size: 3µm x 3µm
    • Sensor Size: 1108µm x 1024µm
    • M5 Optical Lens with FOV:55°(Default)
  • I/O
    • 1x UART
    • 1x SPI controller
    • 1x I2C controller
    • 1x I2S Controller
    • 8x PWM Channels
    • 21x GPIO Pins
    • I/O Rail: 3.3V
  • Power Consumption
    • 5V@300mA
  • Dimension
      • 53.5mm x 76mm
  • Connectors
    • USB Micro-B connector for power and reprogramming the Flash
    • Speaker output port
    • 5V power supply port
    • FPC connector for image display module

    Resources:

    AI Application Demos
    Symbol Recognition Video
    Eye Tracking Camera Demo
