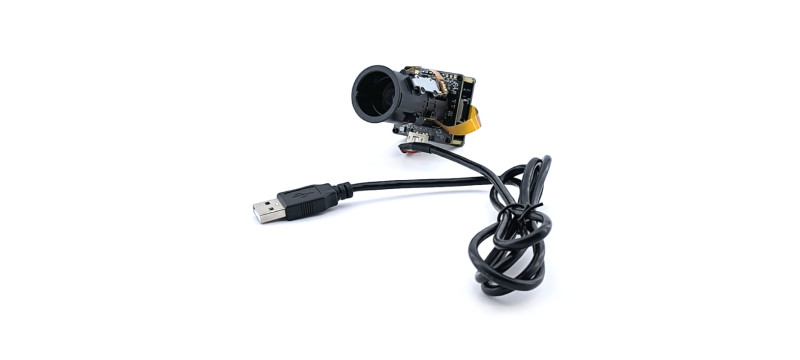

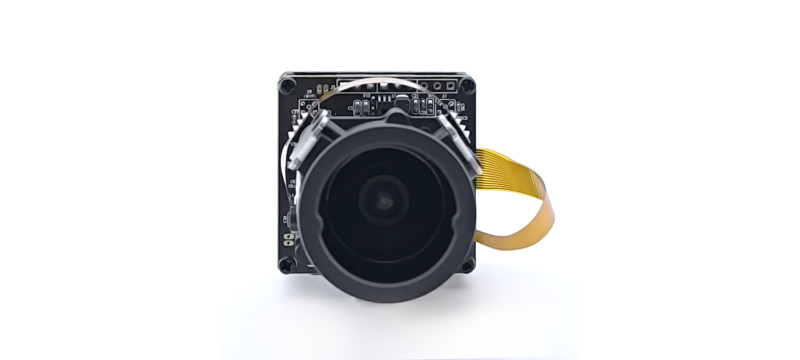

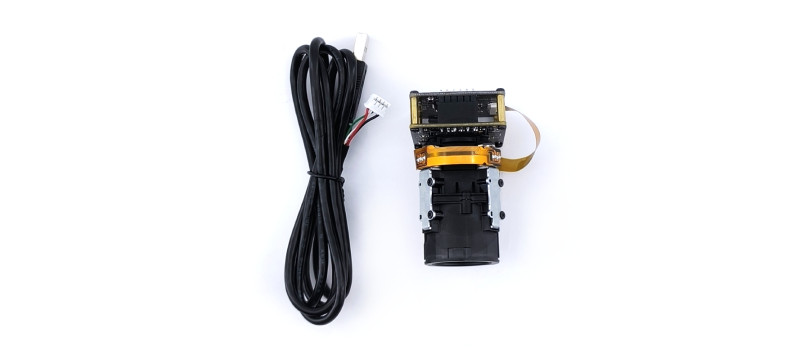

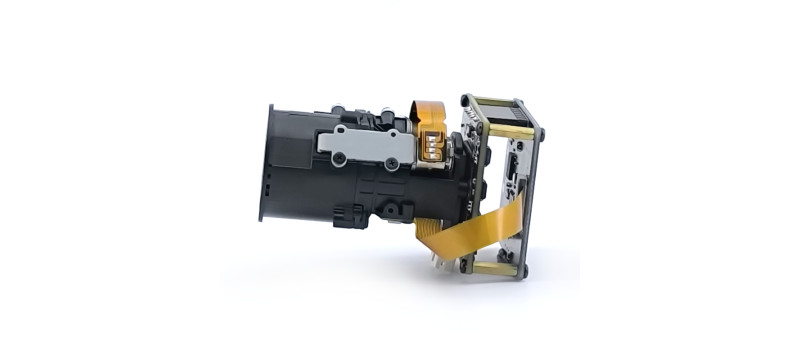

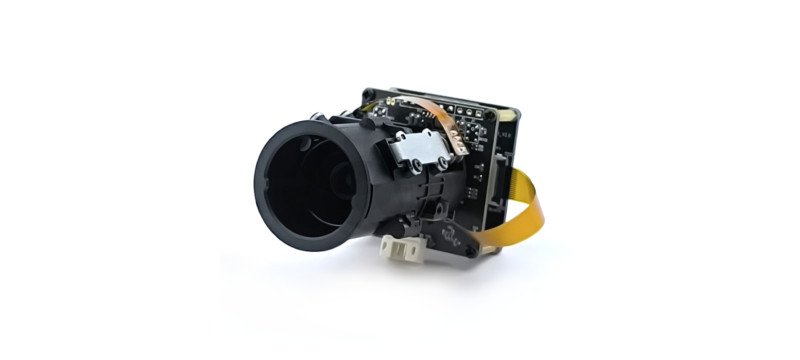

ZCM8M30M30QX3 is a 8 Mega Pixel USB2.0 camera module with 3x Optical Motorized Zoom Lens. The magnification ratio can be adjusted throught standard UVC interface. If you want to get the maximum image magnification, you can also use software like OPENCV to achieve digital magnification.


Technical Information:

ModelZCM8M30M30QX3
SensorIMX415
Image Size1/2.8 inch
Image Pixels & Resolution8M / 3840(H) x 2160(V)
Image FormatsMJPEG / YUY2(YUYV)
Frame Rate3840(H) x 2160(V) MJPG @ 30fps
1920(H) x 1080(V) MJPG @ 30fps
1856(H) x 1040(V) MJPG @ 45fps
3840(H) x 2144(V) YUY2 @ 2fps
1920(H) x 1088(V) YUY2 @ 5fps
1280(H) x 704(V) YUY2 @ 10fps
Max S/N Ratio50 dB
Dynamic Range80 dB
Sensitivity2350 mV/Lux-sec
Shutter Typerolling shutter
Connecting PortUSB2.0 Type C
Operating Temperature-20 ~ 60°C
Power SupplyUSB Bus Power
Operation VoltageDC 5V
Operating Current360mA
Weight80g
Operating SystemWinXP/Win7/Win8/Win10/Win1

Note:
The estimated lead time is 14 ~ 21 days. For detailed lead time, please contact us.

8M Zoom 3x USB Camera Module - ZCM8M30M30QX3
FEATURES
- Sony IMX415 Image Sensor
- 8MP (3840x2160) USB 2.0 interface
- PCBA Dimensions: 38x38mm
- 3x Optical Zoom out capability
- 10x Digital Zoom out by software tools
- UVC support
- Focus software Adjustable
- FL 3.41mm ~ FL10.33mm
- Plug&Play for Windows and Linux

Datasheet

Download
Based on 0 reviews. - Write a review
$200.0
10 or more $160.0
20 or more $140.0
50 or more $125.0
100 or more $115.0
  • Deliver Time: Available, 7~21 Days
  • Product ID: ZCM8M30M30QX3
Add to Cart
Buy Now Contact us
Add to Wish List Compare this Product
Note:

We also support custom made service as your requirements.

For more details, please contact us.
