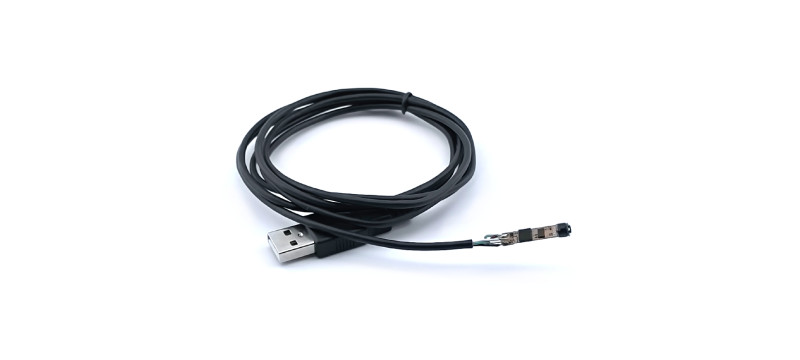

Endoscope Camera Module 2M - SCM2M30D8U

Description

The SCM2M30D8U is a 2mega pixel, 1920x1080 high resolution and very small diameter endoscope. USB cable length and LED light intensity adjuster can be options. IP67 waterproofing, selectable FOV angle, compact size make it an excellent inspection solution.

Technical Information:

Model	SCM2M30D8U
Sensor	GC2755
Image Size	1/5 inch
Image Pixels & Resolution	2M / 1920(H) x 1080(V)
Image Formats	YUV2 (YUYV) / MJPEG
Frame Rate	1920(H) x 1080(V) @ 30fps 1280(H) x 720(V) @ 30fps
Max S/N Ratio	36 dB
Dynamic Range	68 dB @ 8x gain
Sensitivity	600 mV/Lux-sec
Min Illumination	0.1 Lux
Shutter Type	Electronic rolling shutter / Frame exposure
Connecting Port	USB 2.0 High Speed
OTG Support	USB OTG protocal support
3A Support	Auto white balance, Auto exposure, Auto Gain control support
Operating Temperature	-20 ~ 70°C
Operating Voltage	DC 5V
Operating Current	~140mA
PCBA Dimension	8mmx28mm

Note:
The estimated lead time is 5 ~ 10 days. For detailed lead time, please contact us.

Endoscope Camera Module 2M - SCM2M30D8U

FEATURES

- GC2755 Image Sensor
- 2MP 1920(H)x1080(V) @30fps
- Dimensions: D8x28mm
- USB 2.0 interface, UVC compliance
- Lens Type: Standard FOV(D) 60°
- If you need custom USB Cable length
or different FOV angle, please contact us

Datasheet

Download

Based on 0 reviews. - Write a review

Starting From $48.0

10 or more $40.0

50 or more $33.0

200 or more $27.0

Deliver Time: Available, 7~21 Days
Product ID: SCM2M30D8U

Available Options

Stainless Steel Sleeve

With Stainless Steel Sleeve

No Sleeve

Reset options

Qty

Add to Cart

Buy Now Contact us

Add to Wish List Compare this Product

Note:

We also support custom made service as your requirements.

For more details, please contact us.
